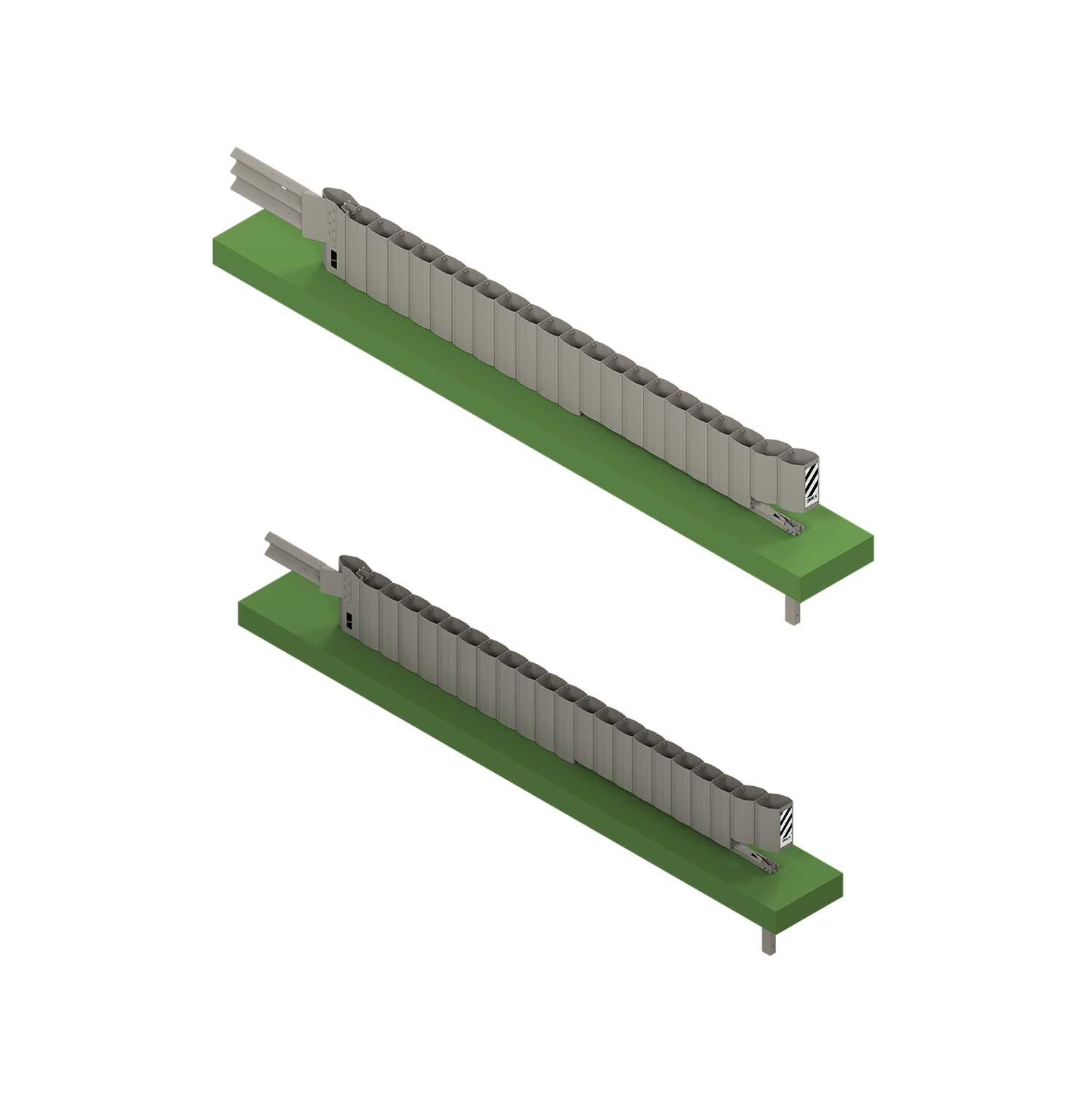

Terminal for road barriers class T110 in accordance with the European regulation CEN/TS 1317-7 (class P4 ENV 1317-4). Installation on the ground/asphalt in a lateral position.
Terminal-LT110
Reference Standard
CEN/TS 1317-7
Harmonized Standard
awaiting release
Performance Level /Class
T110
Impact Severity / ASI
B
Rebound Zone
Z2
Lateral Displacement
S 0,5 - T 1,0
Durability
Hot dip galvanizing ISO 1461
VARIANTS
Prepared for connection to a road barrier with 2-wave tape at a height of approximately 750mm or with 3-wave tape at a height of approximately 850mm.
ACCESSORY PRODUCTS
2-wave barrier connection - New Jersey type barrier connection
